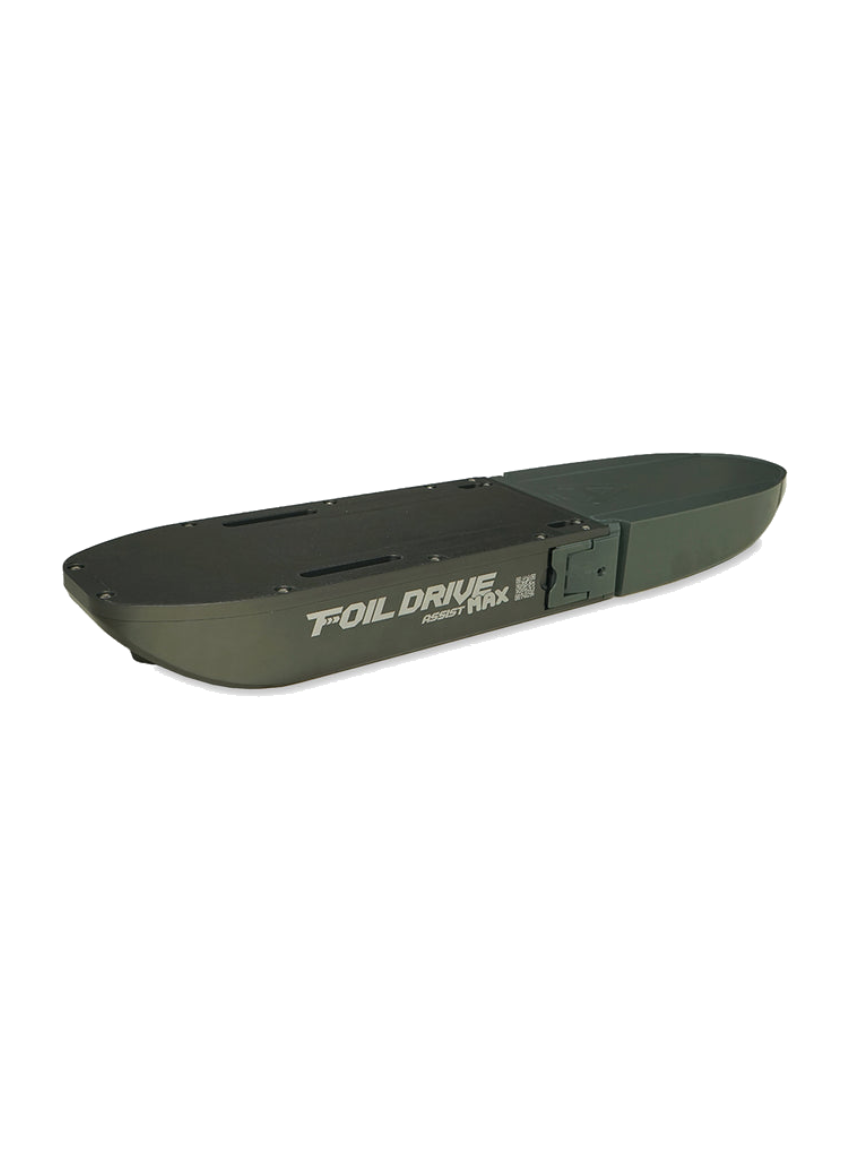

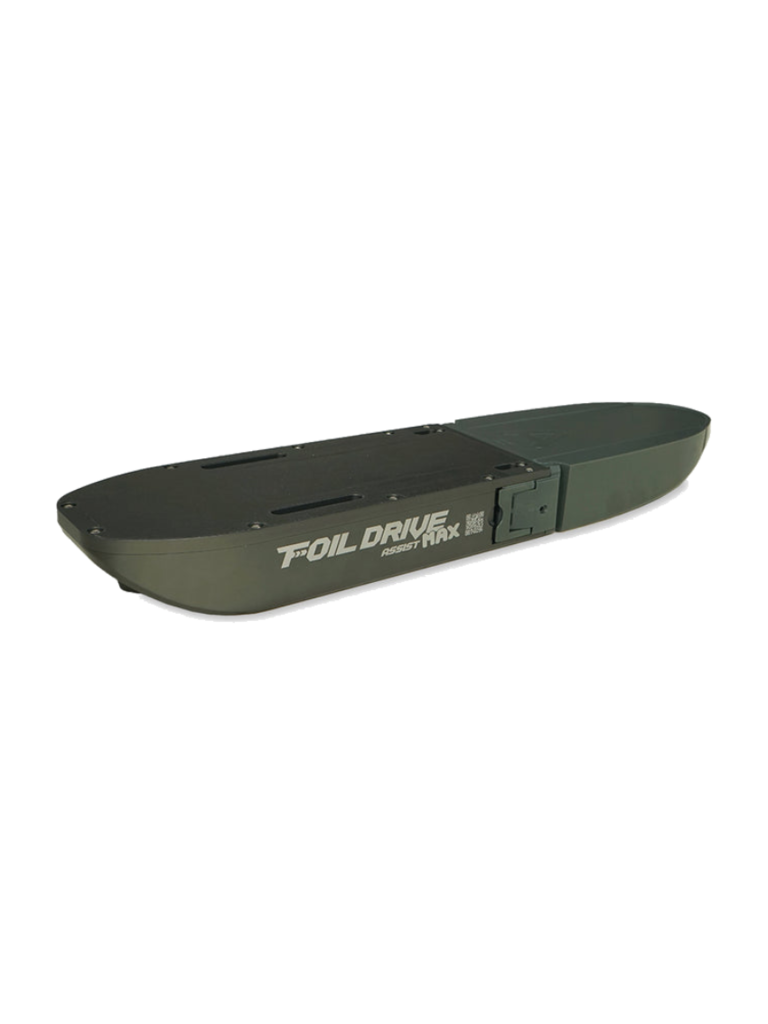

The Foil Drive Assist MAX is the flagship model, for the ultimate in hybrid electric assist foiling. As the name suggests, the Assist MAX offers the maximum thrust, run time and versatility!
The kit includes everything you need to turn your existing foil and board into an electric assisted foiling machine!
The Foil Drive Assist MAX is perfectly suited to those looking for extra thrust for heavier riders or smaller boards and foils, longer ride times and ultimate flexibility of how you choose to foil. Surf, Wing, Downwind, Wake and Flatwater, the Assist MAX does it all!

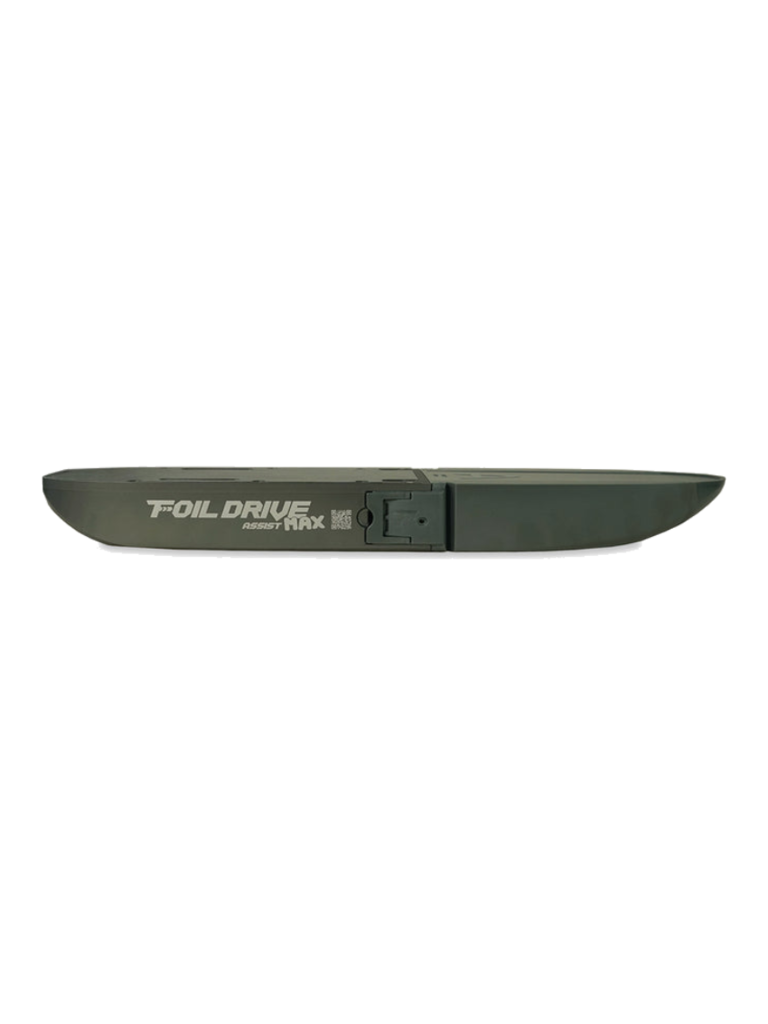

MAX POWER BATTERY
The largest MAX battery offering the longest run time with high power performance. This battery must be used with the Assist MAX, Nose Cone A.
Volts: 40V
Energy: 498.69Wh
Battery Weight: 2.6kg (5.7lbs)
Weight (Installed): 4.5kg (9.9lbs)
Dimensions (Installed):
L525 x W125 x H50mm
Dimensions (Battery Only):
L420 x W75 x H40mm
MAX SPORT BATTERY
The smaller, lighter MAX battery, with a reduce weight and runtime. This battery must be used with the Assist MAX, Nose Cone B.
Volts: 40v
Energy: 332.64Wh
Battery Weight: 1.8kg (3.9lbs)
Weight (Installed): 3.4kg (7.4lbs)
Dimensions (Installed):
L415 x W125 x H50mm
Dimensions (Battery Only):
L290 x W75 x H40
Tech Specs:
Maximum Thrust: 27.5kg (60.6lbs) with Three Blade Alloy Props
Weight Range: 3.4 - 4.5kg (7.4-9.9lbs) depending on battery
Max. Dimensions: L525 x W125 x H50mm
Min. Dimensions: L415 x W125 x H50mm
Operating Voltage: 40V
Runtime (Generalised): 40min-4hrs depending on use case, battery and other variables.
Recharge Time: Appx. 2-3.5hrs (Power Battery)
Batteries: IP68 rated dust and water resistant.

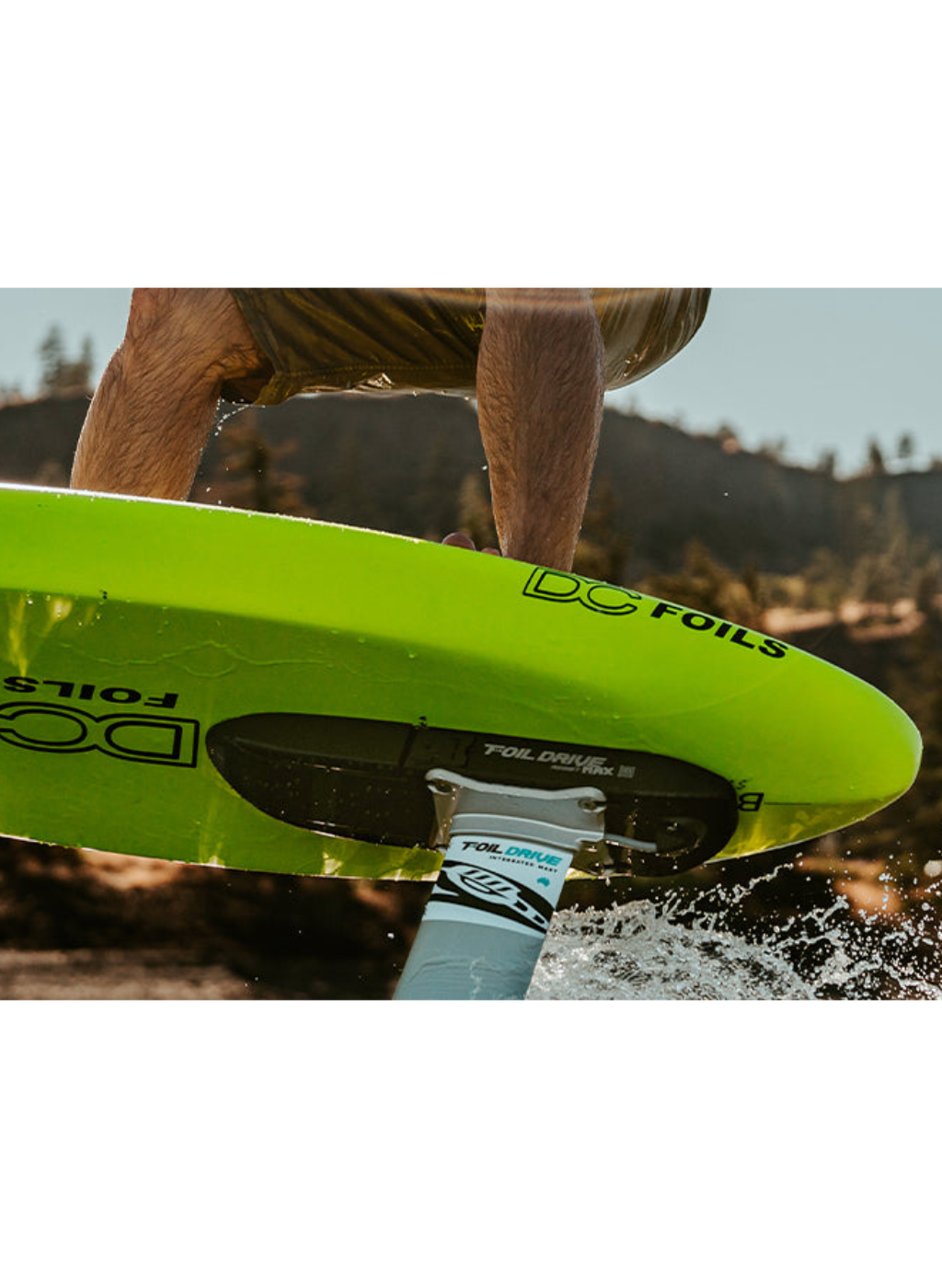

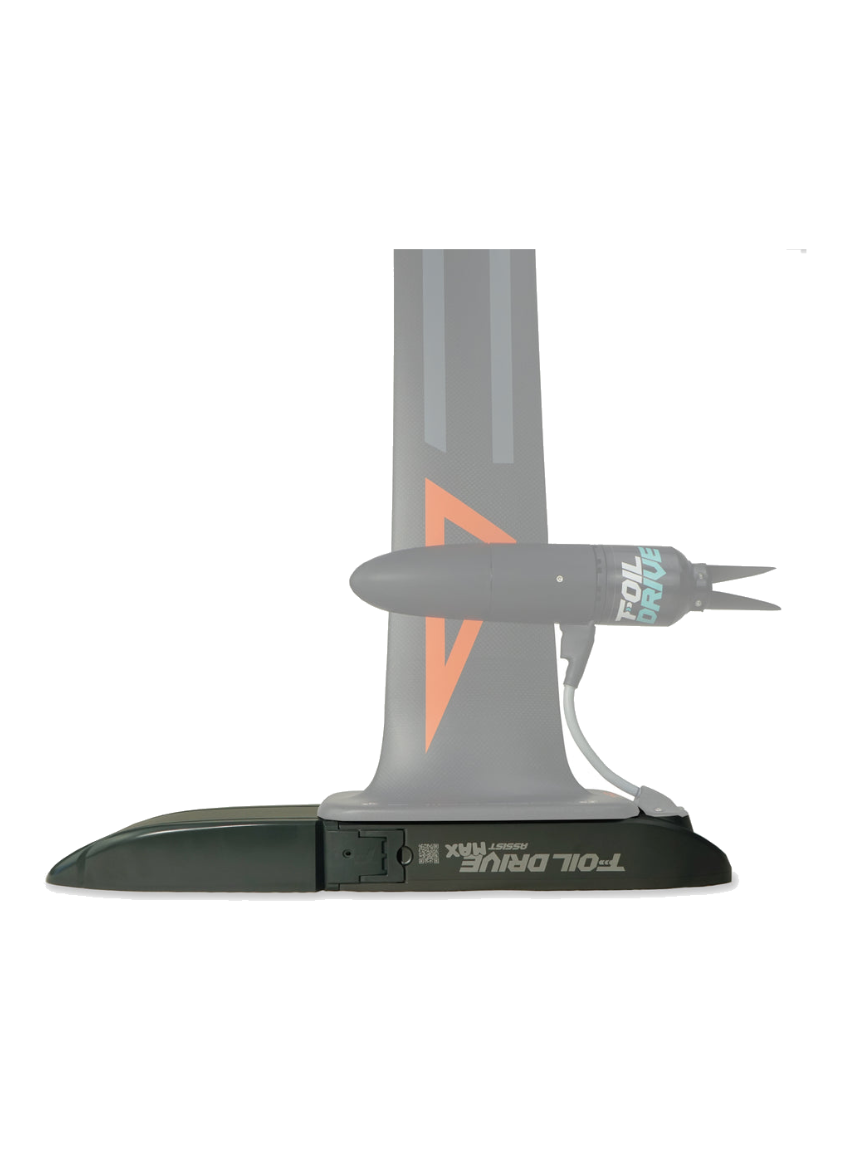

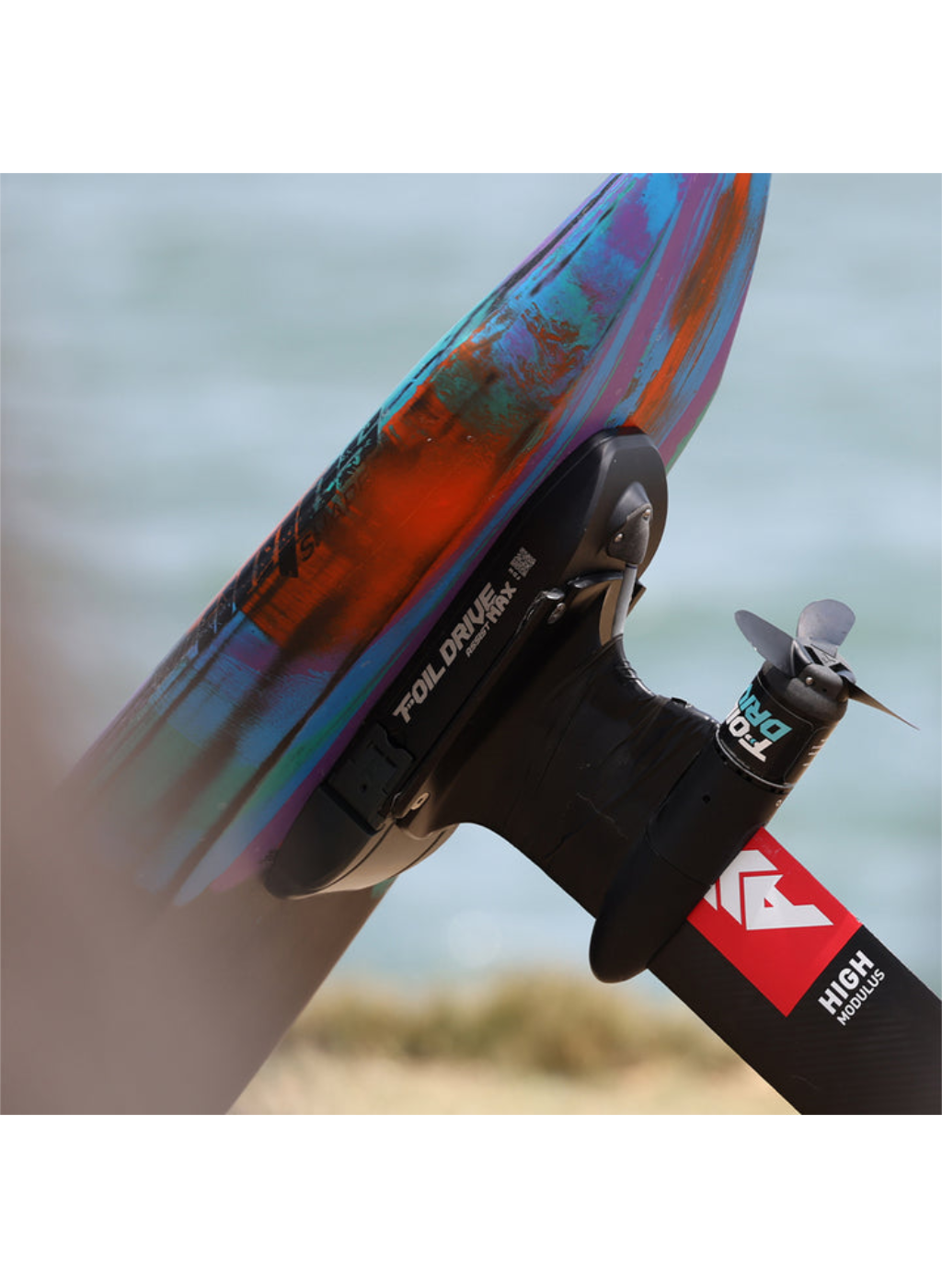

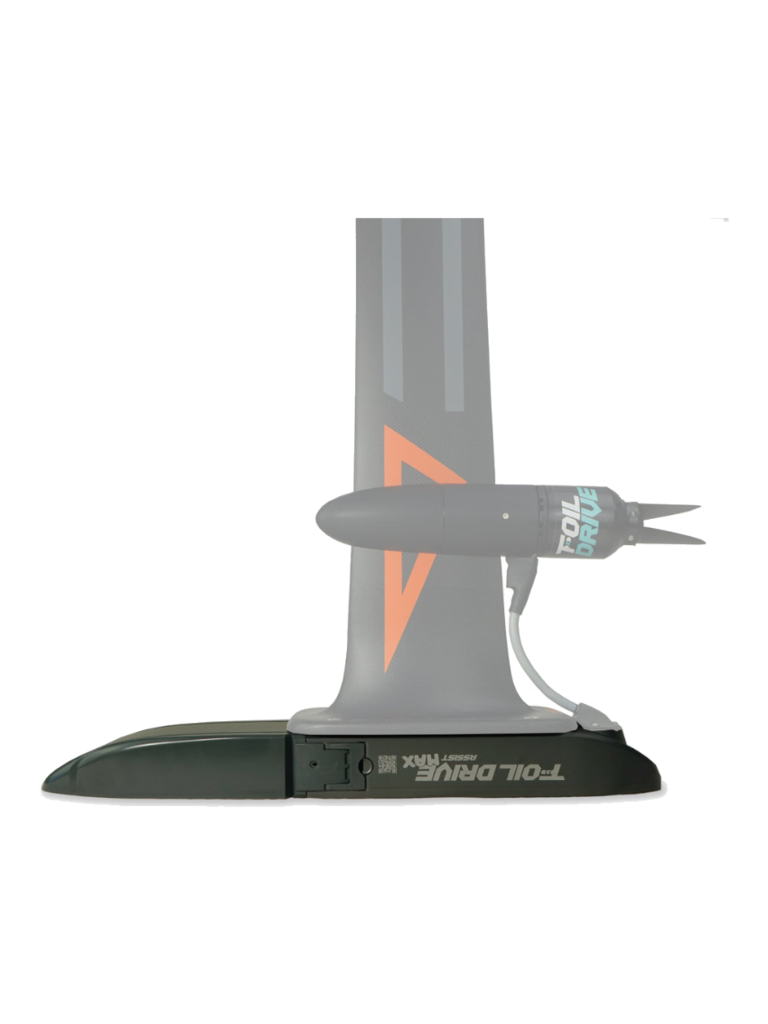

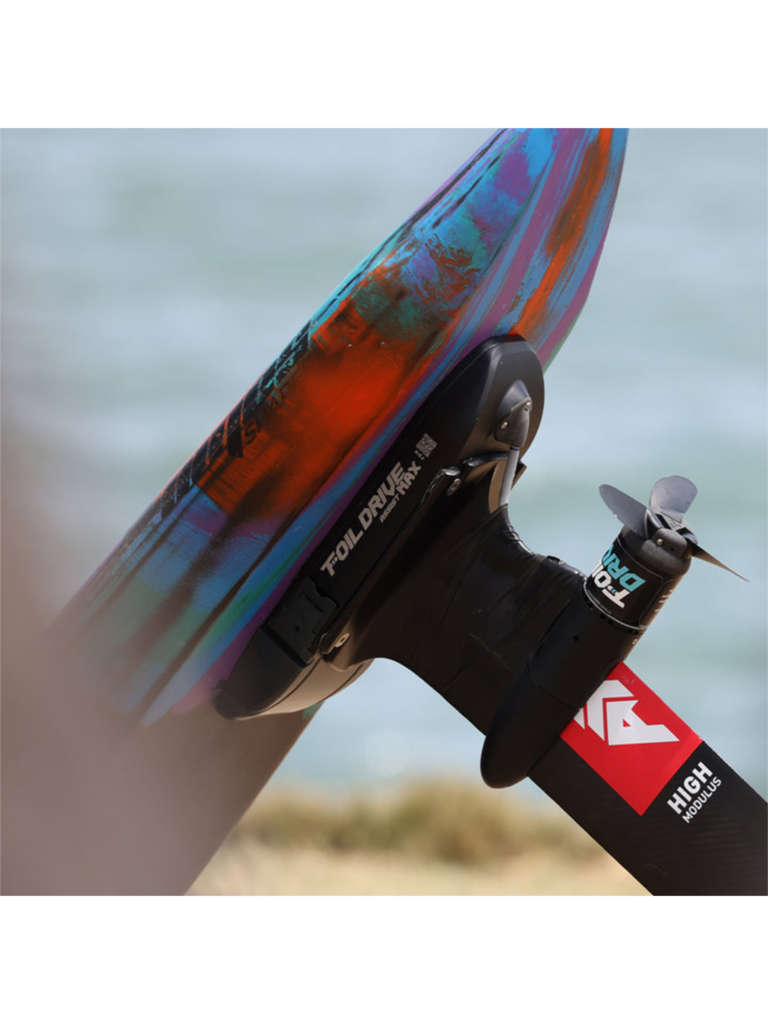

INSTALL ON ANY FOIL BOARD & MAST
Gen2 Foil Drive Systems mount between your mast plate and the board. As foil mast tracks are universal, this means it fit's any board! Simply use the provided locking T nuts and longer mast bolts. Sandwich your Gen2 Foil Drive between your gear for optimal weight distribution and a clean top board surface.
Note: Boards with Carbon Tracks are experiencing connectivity issues. We are working on a solution for this, for more click here.

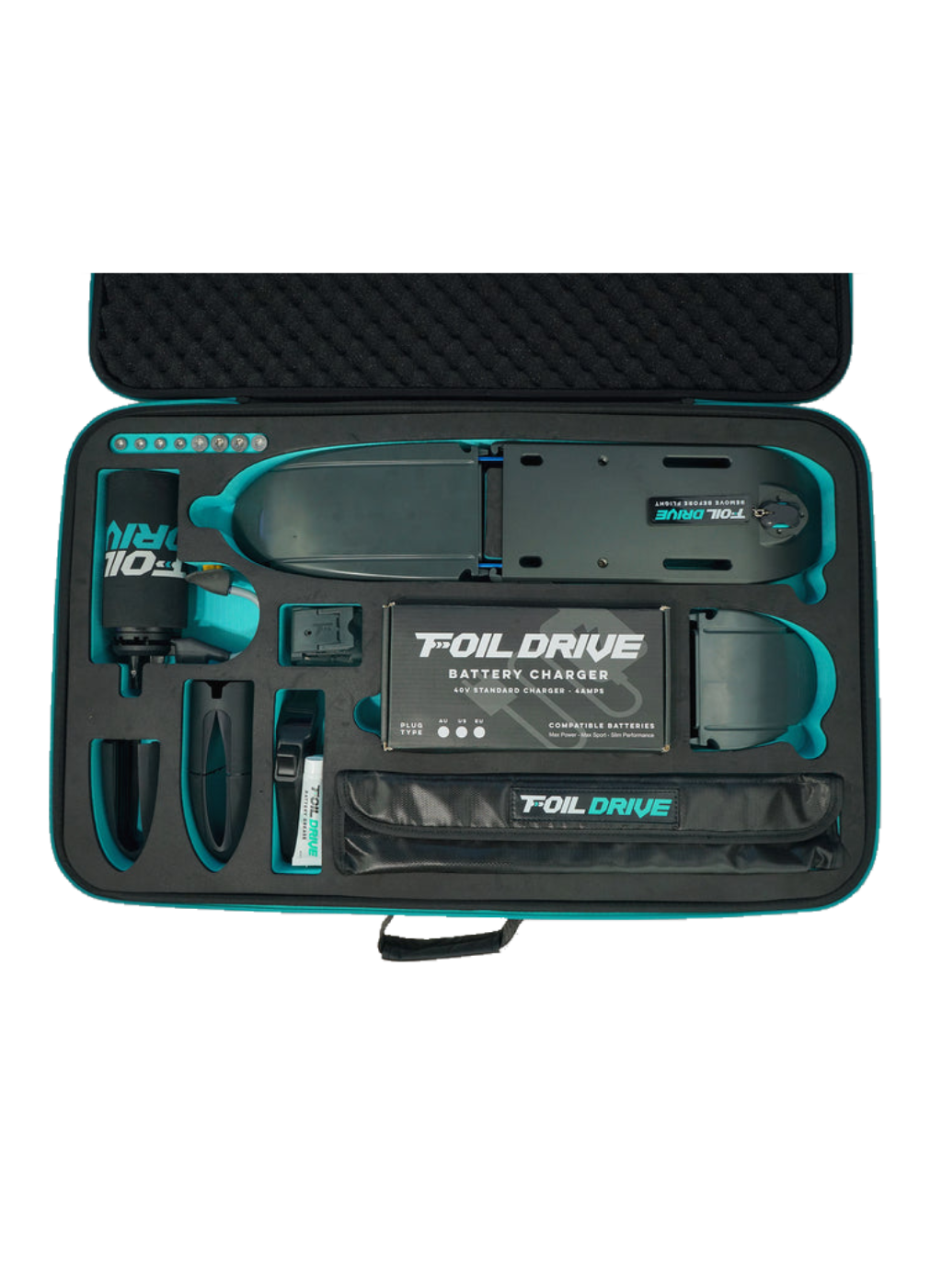

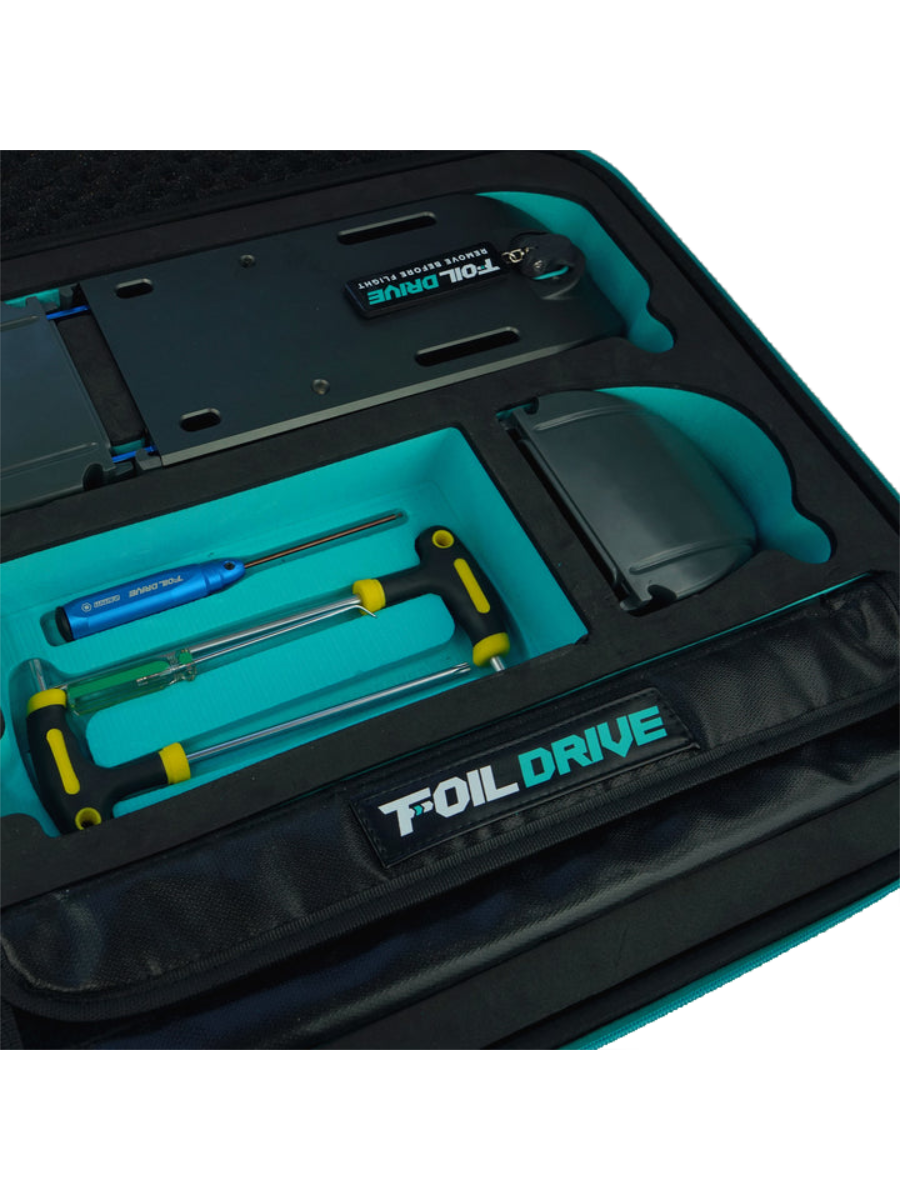

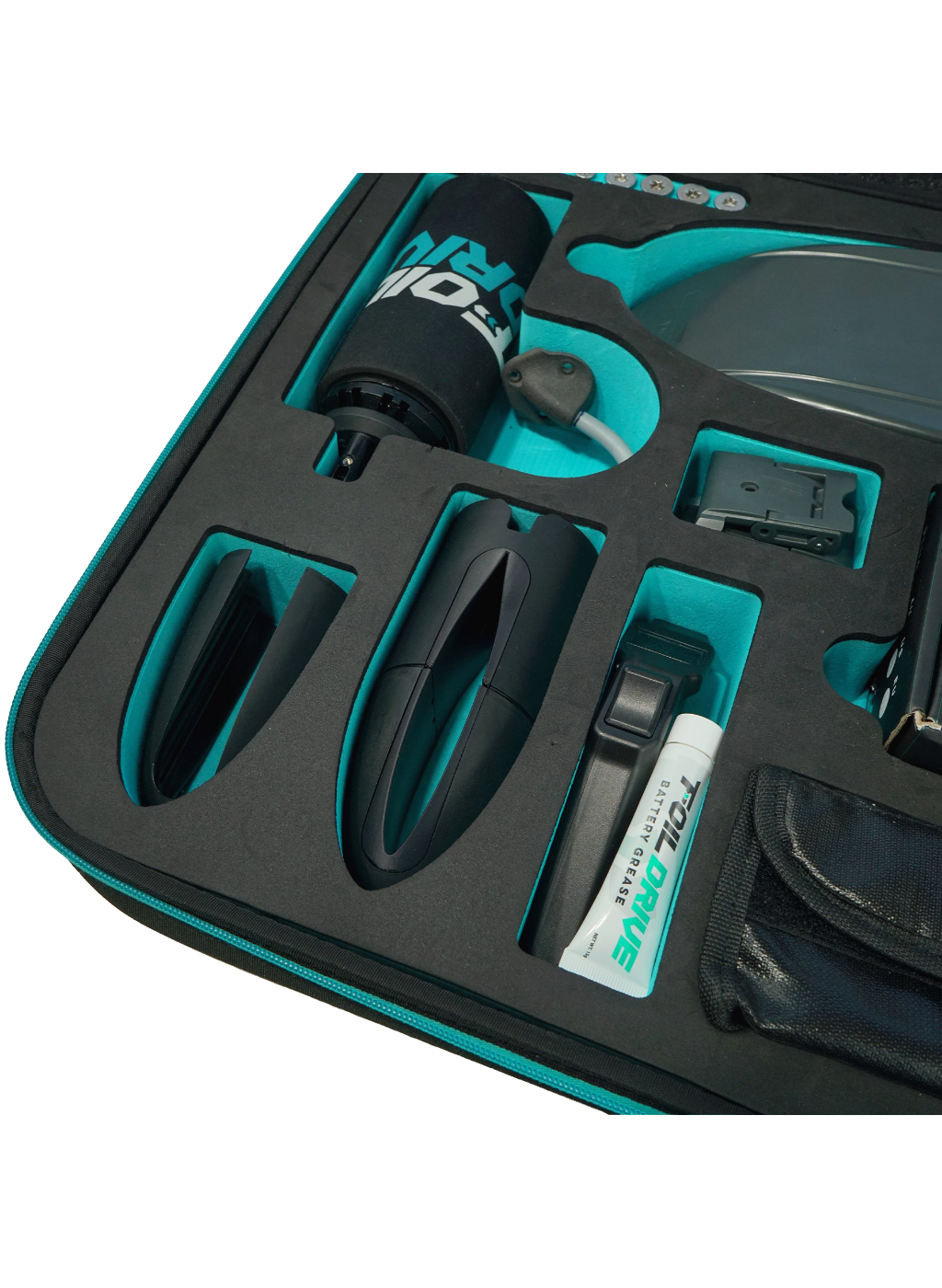

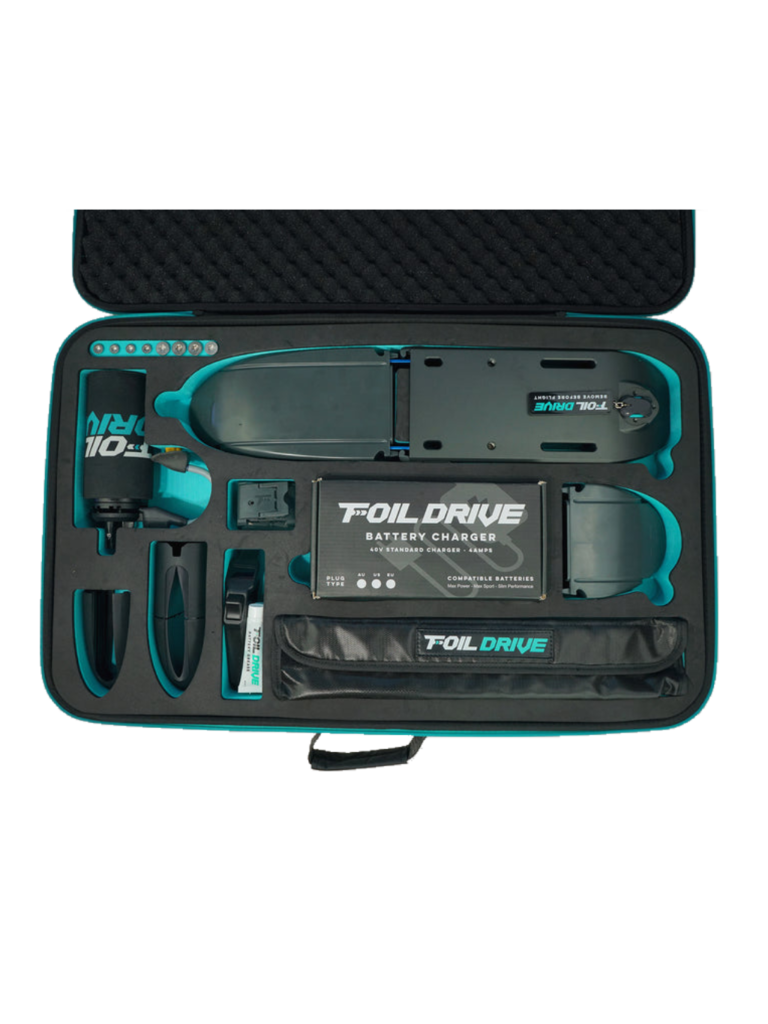

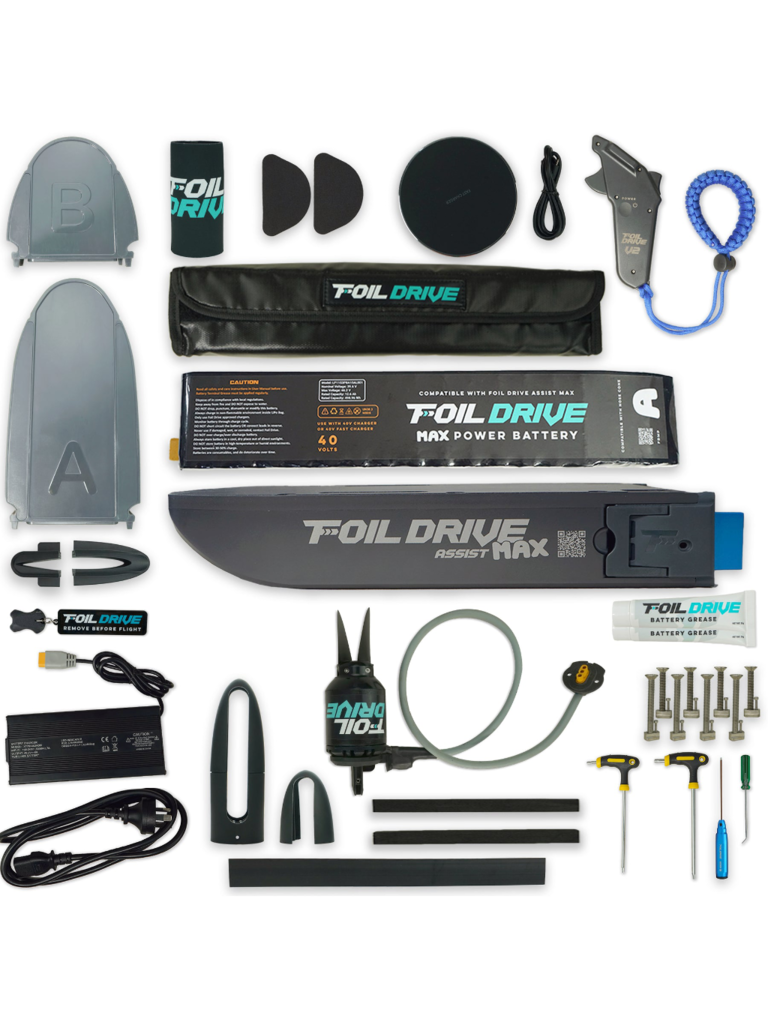

What's Included:

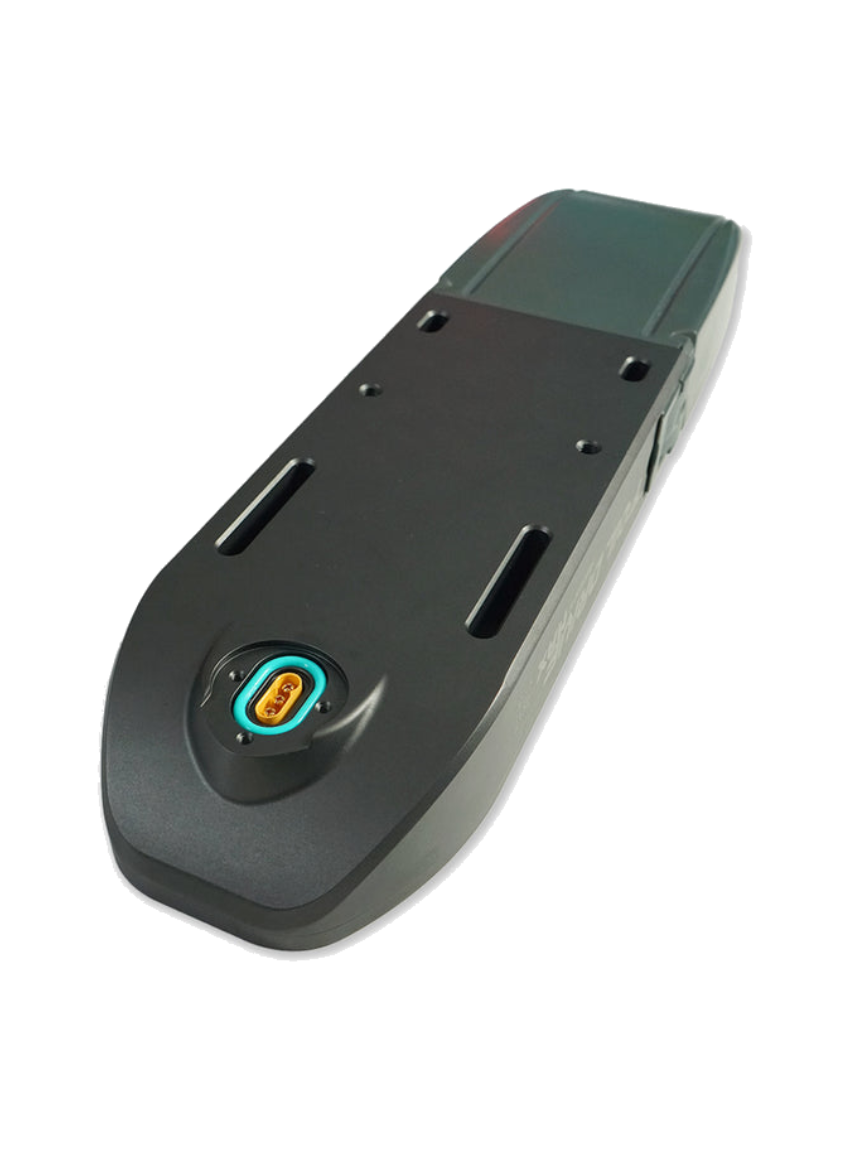

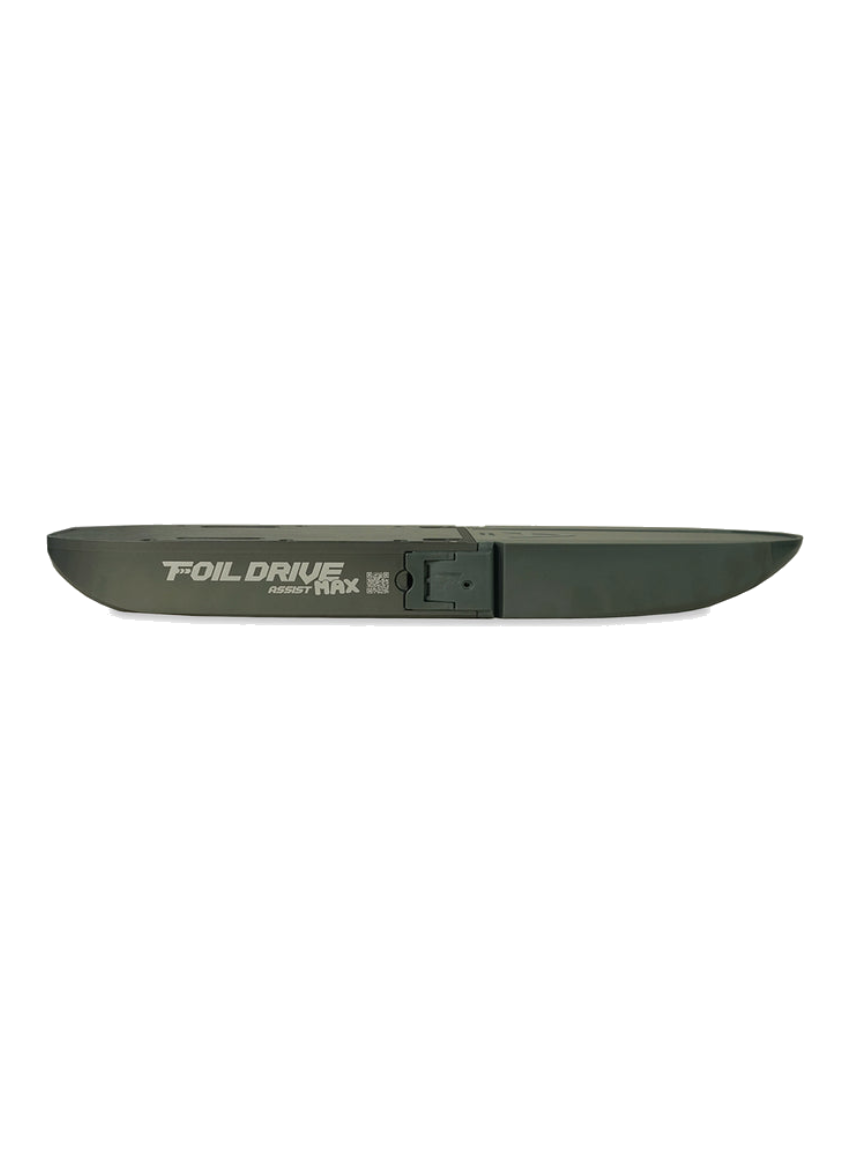

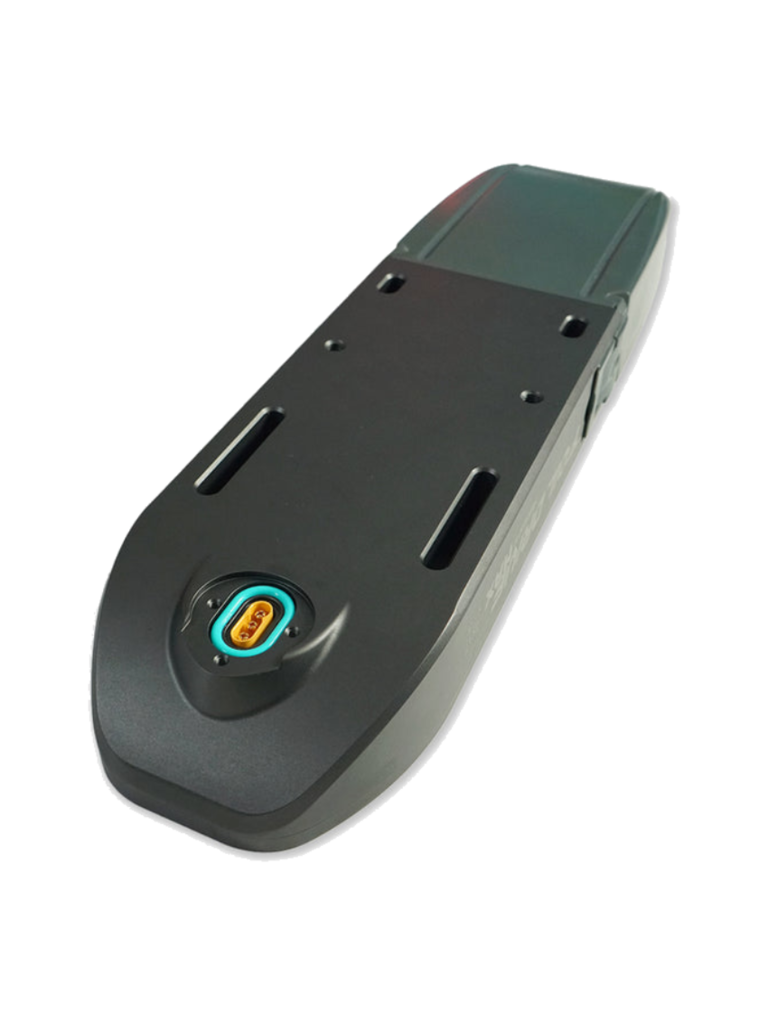

Foil Drive Assist MAX Electronics Box
Motor Plug Protector with Keychain
Foil Drive Nose Cone A
Foil Drive Nose Cone B
Foil Drive Universal Motor Pod - Rear
Foil Drive Universal Motor Pod - Short Nose
Foil Drive Universal Motor Pod - Long Nose
Foil Drive v2 Wireless Throttle Controller
Foil Drive Controller Wrist Strap
Foil Drive Mast Cable Guide 23cm
Foil Drive Controller Wireless Charge Pad
Micro USB Cable
40v Standard Foil Drive Charger 4amp
4x Mast Track Foam Inserts
2x Nose Cone Rocker Pad
2x Battery Grease
4x M8 Assist MAX Mast Plate Bolts 80mm
4x M6 Assist MAX Mast Plate Bolts 80mm
Foil Drive 2.5mm Driver
Torx T40 Tee Handle Driver
Torx T30 Tee Handle Driver
Foil Drive Cleaning Cloth

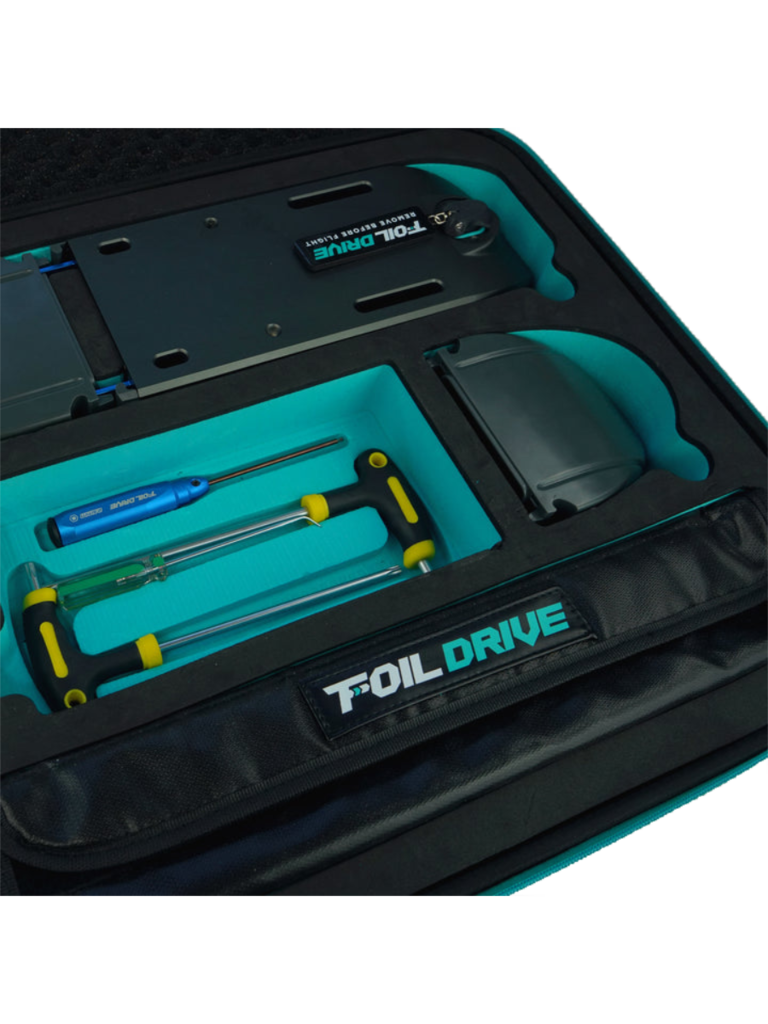

Foil Drive Gen2 Carry Case
Foil Drive Mounting Bolt Bag
- 4x M8 Locking Tee Nuts
- 4x M6 Locking Tee Nuts
- 4x M3 x 20mm Bolts for Locking Tee Nuts
- 2x M3 x 16mm Latch Locking Bolts
Foil Drive Motor and Pod Bolts Bag
- 4x Motor Pod Bolts (M3 x 12mm)
- 3x Puck Bolts (M3 x 12mm)
- 3x Motor Plug Bolts (M4 x 10mm)
Spare Parts Bag
- 2x O-Ring Seals - Foil Drive Assist MAX
- 2x Latch Assembly - Foil Drive Assist MAX
- 3x Motor Plug Bolts (M3 x 12mm)
- 4x Motor Pod Bolts/Puck Bolts (M3 x 12mm)
- 2x Latch Locking Bolts (M3 x 16mm)
- 2x Propeller Bolts (M3 x 30mm)
- 2x Latch Pivot Bolts (M3 x 45mm)
Compatible With:
MAX Power Battery
MAX Sport Battery (available early 2024)
Universal Motor Systems for Gen2
Project Cedrus Integrated Mast for Gen2
AXIS Integrated Mast for Gen2
Tech Specs:
Max Thrust: 27.5kg (60.6lbs)
Weight Range: 3.4-4.5kg (7.4-9.9lbs)
Dimensions with Long A Nose Cone: L525 x W125 x H50mm
Dimensions with Short B Nose Cone: L415 x W250xH50mm
App compatibility: Foil Drive app, Android and IOS
